This Zana Matt Black Dual Control bundle adds a sleek minimalistic touch to any shower. With a modern matt black finish, the dual valve comes with the matching square shower head and slide rail kit. It has an automatic shut-off in the event of either hot or cold water supply failure. The pre-set temperature is 38 degrees, with a push-button override to 48 degrees. This valve is also suitable for combination boilers, pressurized systems, pumped systems, and gravity-fed systems (which may require a pump).
Need to know - valve
- Dimensions: H160.5 x W130 x D134.5 mm
- Number Of Outlets: 2
- Style: Modern
- Valve Accessibility: Easily accessible check valve
- Temperature: Pre-set 38°C, with push button override to 48°C
- Function: Automatic shut-off in the event of hot or cold water supply failure
- Material: Brass, zinc, stainless steel
- Weight: 2.369kg
- Valve Type: Concealed
- Outlet Size: G 3/4"
- Inlet Size: G 3/4"
- Colour: Black
- Finish: Matt
- Finish process: Electroplating
- Features: Thermostatic Cartridge
- Min Pressure & Flow Rate: 0.5 bar (flow rate of 9.9 litres per minute)
- Max Recommended Pressure: 3 bar (flow rate of 24.6 litres per minute)
- Warranty: 3 years

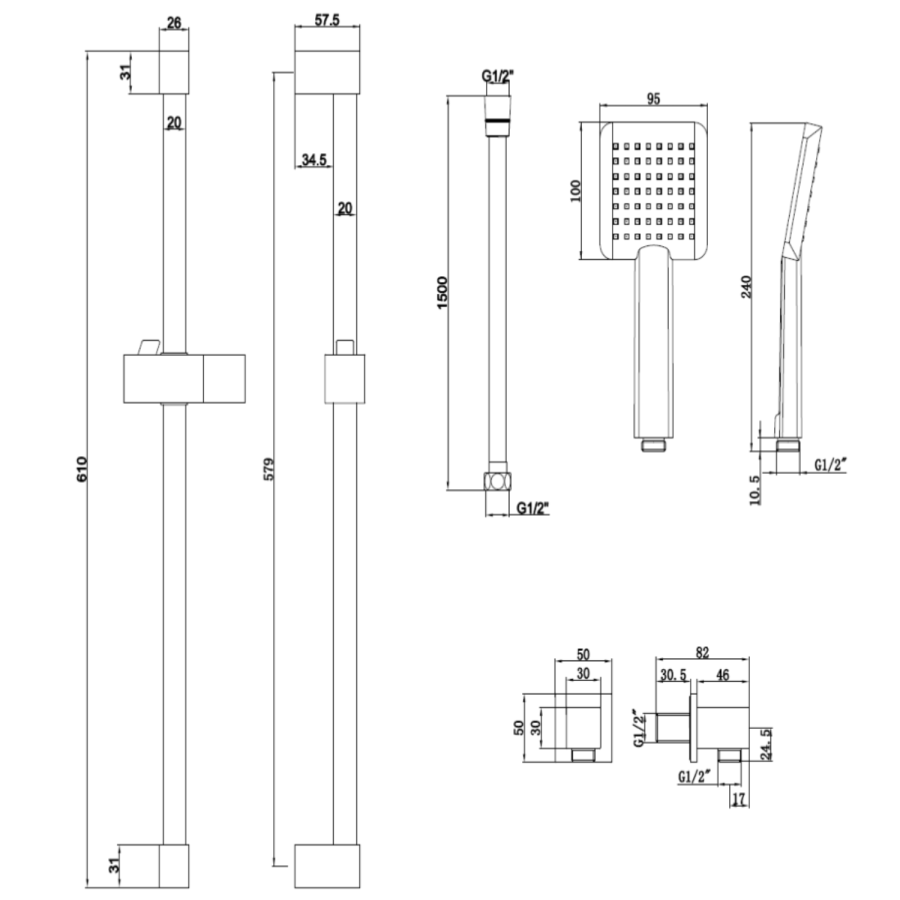

Need to know - slide rail kit
- Length of riser rail kit: 610mm
- Depth of riser rail kit: 57.5mm
- Shower head dimensions: H100 x W95mm
- Length of shower hose: 1500mm, pvc smooth hose
- Elbow size: H30 x W30 x D30mm
- Material: Brass, stainless steel, ABS
- Weight: 0.949kg
- Colour: Black
- Finish: Matt
- Finish process: Electroplating
- Inlet size: G1/2"
- Recommended minimum pressure: 0.3 bar (flow rate of 3.9 litres per minute)
- Recommended maximum pressure: 3.0 bar (flow rate of 11.5 litres per minute)
- Warranty: 3 years

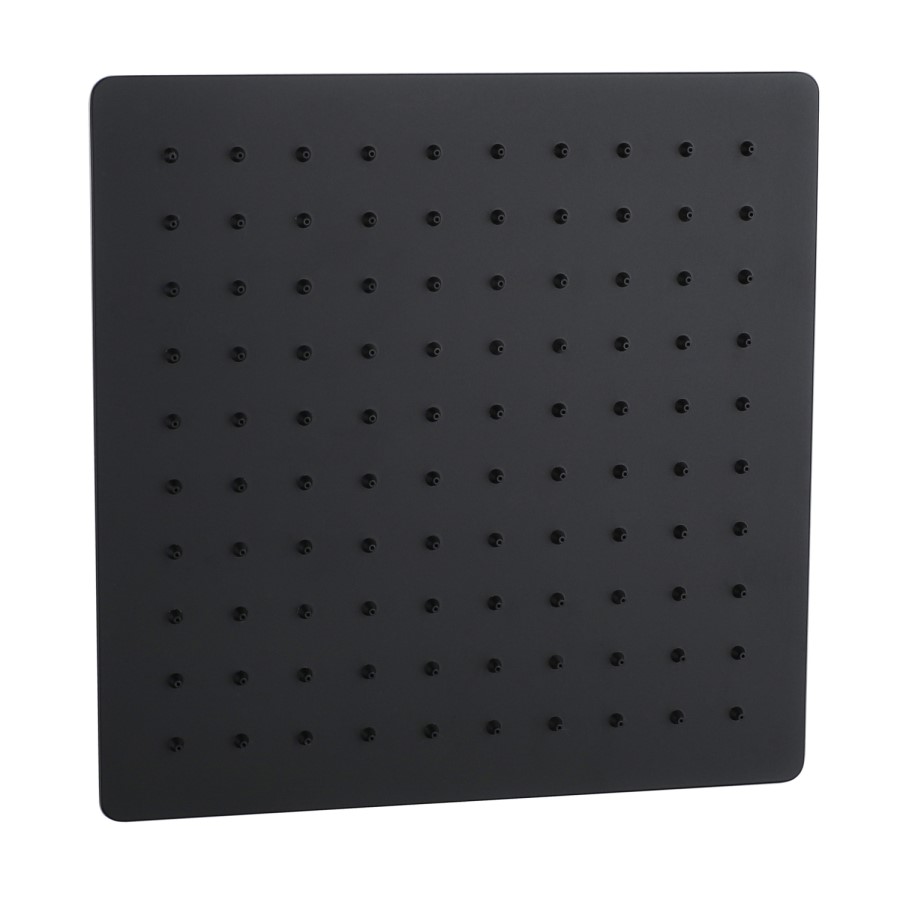

Need to know - head & arm
- Style: Modern
- Head Dimensions: H250 x W250 x D47 mm
- Arm Dimensions: L357 mm x W50 mm x D58 mm
- Material: Brass, stainless steel, ABS
- Head Weight: 0.817kg
- Arm Weight: 0.17kg
- Colour: Black
- Finish: Matt
- Finish process: Electroplating
- Min Pressure & Flow Rate: 0.5 bar (flow rate of 12.8 litres per minute)
- Max Recommended Pressure: 3 bar (flow rate of 29.8 litres per minute)
- Warranty: 3 years
