This bundle includes :
Aquafloe 6mm 800 x 800 Sliding Door Quadrant Enclosure
1 x Slim Line 800 x 800 Quadrant Shower Tray
Aquafloe™ 6mm 800 x 800 Sliding Door Quadrant Enclosure
Summary

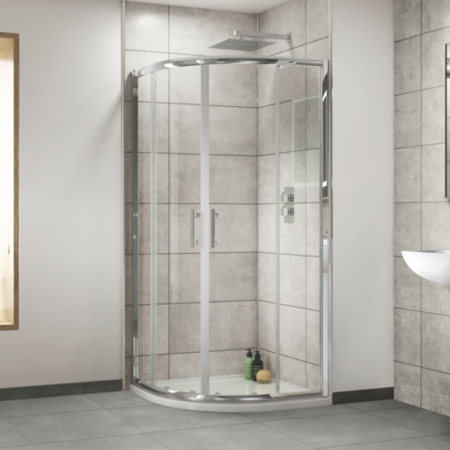

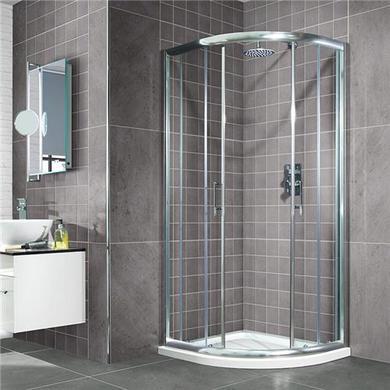

An 800 x 800 AquaFloe™ shower cubicle made from 6mm glass.
Features
- Shower Quadrant

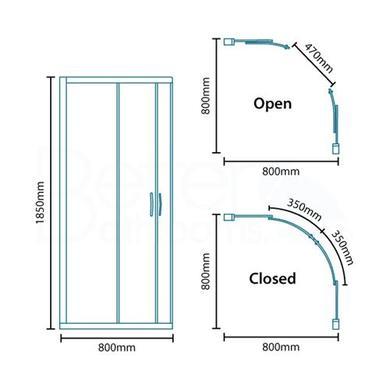

- Width: Adjustable 740mm - 780mm
- Height of the enclosure is 1850mm
- Chrome Finish
- Sliding Door and Side Panels: Manufactured from 6mm thick toughened glass to conform to BS6202 safety standard
- Reversible
- Double Sliding Doors

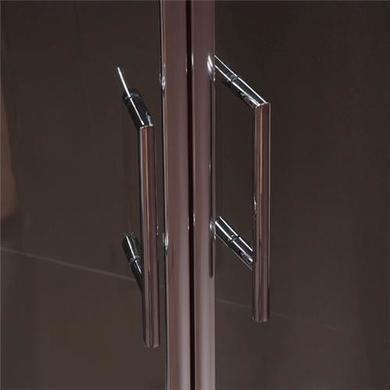

- Chrome plated metal handles
- Full length chrome profile magnetic door closure
- Independent door adjustment for accurate alignment of the door

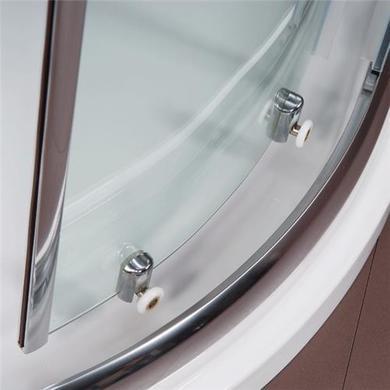

- Easy release roller wheels enabling quick installation and easy cleaning
- Supplied with rust resistant, stainless steel screws and with chromed cap covers where required
- Accreditations & Testing:
- Sliding roller life test to 250,000 times opening
- Fully waterproof tested with anti-leak test to conform to EN14428
- Breakage test to conform to EN14428
- ISO 9001: 2008 and ISO 14000: 2004 registered manufacturer
Slim Line 800 x 800 Quadrant Shower Tray Specification
- Quadrant Shower Tray
- 800 x 800
- Height- 45mm +/- 5mm
- Weight: 20Kg
- Stone Strong Cast with Acrylic Capping
- Impact Resistant Load Bearing Base
Question from Kevin: Asked on 30/09/2020 Where is the waste situated on this shower tray? (preferably in mm from sides of tray please) Is the waste trap included?
The waste hole is situated 95mm at both sides of the tray. The waste is not included with this tray, you can find the required waste under this code: BeBa_1232.
I hope this helps.
Kind regards.
