Product Information
Easy Plumb 800 x 800 Square Shower Tray
Summary

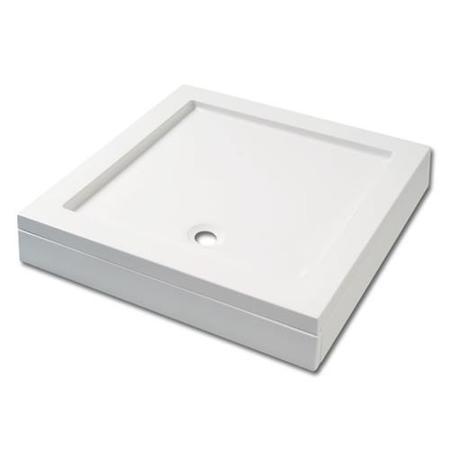

A square shower tray measuring 800mm x 800mm. The tray is manufactured from stone resin with an acrylic capping.
Features
- Square Shower Tray

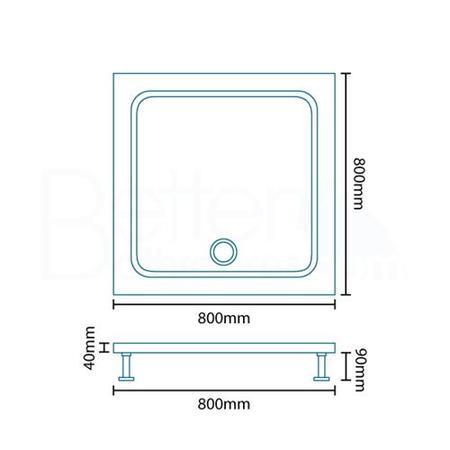

- 800mm x 800mm
- Tray Height: 45mm +/- 5mm

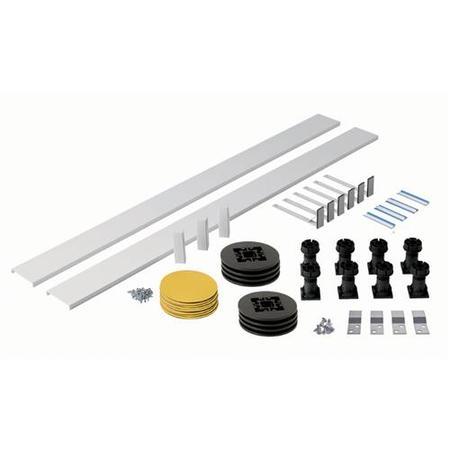

- Tray Height Including Easy Plumb Kit: 135mm +/- 5mm
- Fitted with adjustable legs to aid fitting
- Comes complete with plinth
- Stone Strong Cast with Acrylic Capping
- Impact Resistant Load Bearing Base
- Shower Waste NOT Included (see Products items below)
Please Note:
The image is for illustrative purposes only and is to demonstrate the easy plumb nature of the tray. The tray does not come with upstands or an anti-slip base. Please also note that the actual leg layout and waste outlet position differs from the image shown.
Item Code:
BUN/BeBa_14109/72662
You’ll need a shower enclosure and a shower to go along with your shower tray. Compatible enclosures and showers are listed on the product page alongside your chosen shower tray, alternatively you can browse our full ranges.
Question from Dave Harcourt: Asked on 17/10/2017 Does this base just stand on legs or does it need a wooden based to be build to support it right across the base.
Question from John mackay : Asked on 08/08/2017 The tray does not come with upstands, what does this mean and the waste is not in the position shown, where is the waste position
Question from David King: Asked on 23/03/2017 What is the total height of the tray with the risers. I need to replace the tray I have without re-tiling the bathroom so I need to get the top edge of the tray at least 200mm above the floor. I see your tray is 45mm and the risers 135mm but the risers will lose some height when placed under the tray.
Answer from chris thomas Hi,
Thank you for your question.
i maximum height for our riser kit and tray together is 17-18cm
If you need any more info or wish to place an order please contact me using the details below as i can check stock levels and allocate stock faster to you.
Kind Regards,
Chris Thomas
Manchester Showroom Sales Assistant
Better Bathrooms Manchester
Telephone: 0161 667 6560
Email: chris.thomas@betterbathrooms.com
Website: www.betterbathrooms.com
Question from Richard: Asked on 29/05/2016 Which size waste fits this shower tray or can you choose either?
Answer from Simon Hi,
This would be a 90mm waste that you would need.
Regards
Simon
Manchester Showroom
0161 667 6560
Question from angela: Asked on 15/04/2016 Which waste do I buy with the easy plumb shower tray,, we are putting this directly onto concrete floor.
Answer from Benjamin Linnert Good Morning,
Thank you for your question.
You would need to buy a 50 mm waste and trap with this tray.
In regards to the item itself, due to us running our April Showers promotion we are currently running low on stock. To secure the yours and the other items your looking at purchasing today, please feel free to give me a call on 0161 667 6560 - Ben, and we will get it sorted for you.
Kind regards.
Question from bill lees: Asked on 11/05/2014 does this base fit all 800 shower enclosures
Answer from Peter Hi there,
It will fit all of the enclosures we supply for this tray within the dimensions specified on each 800mm x 800mm enclosure product code on the website.
Kind Regards
Question from June: Asked on 29/03/2014 As we have existing piping under our tiled floor can you tell me what size trap this shower tray is please.
Answer from Peter Hi
Its 45mm
