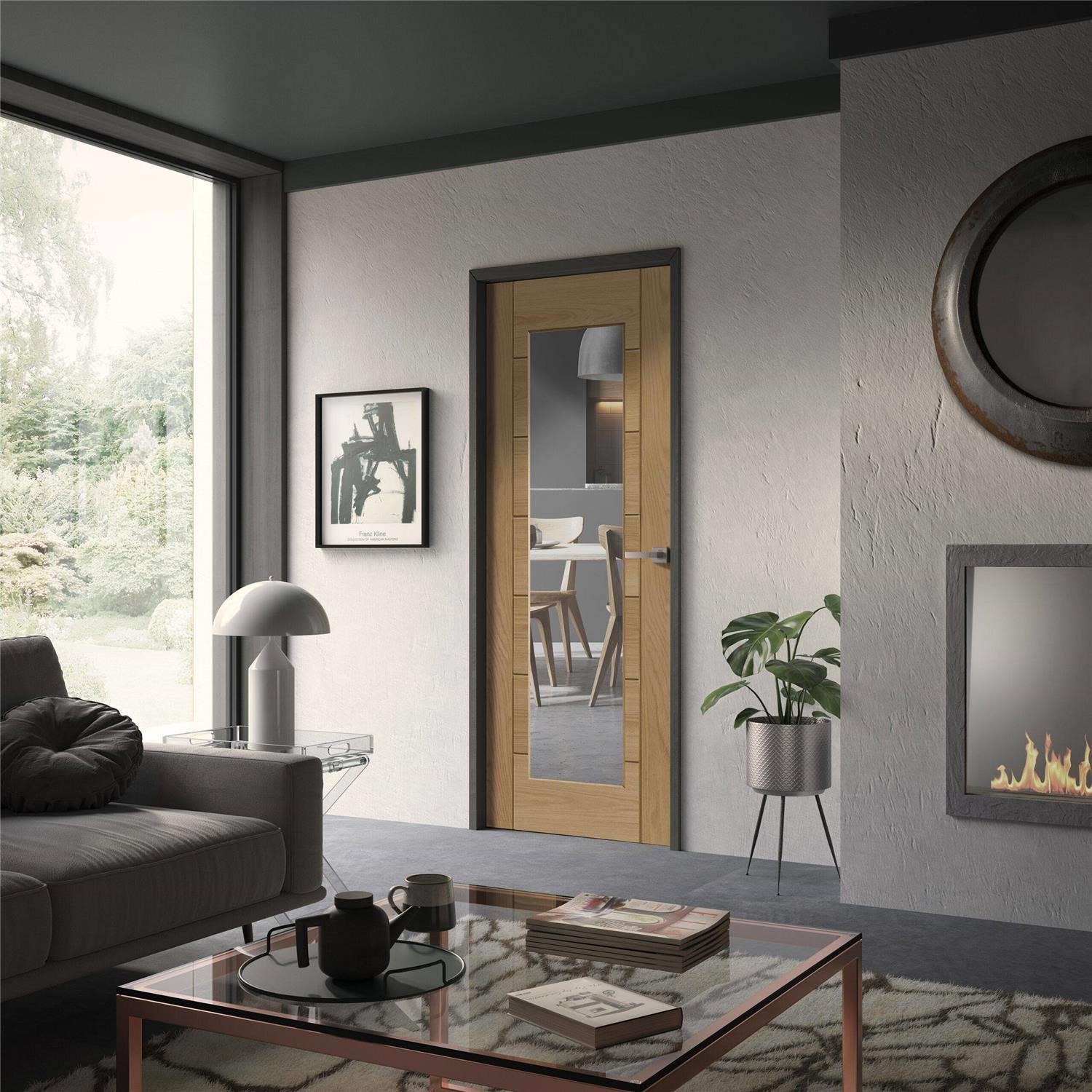

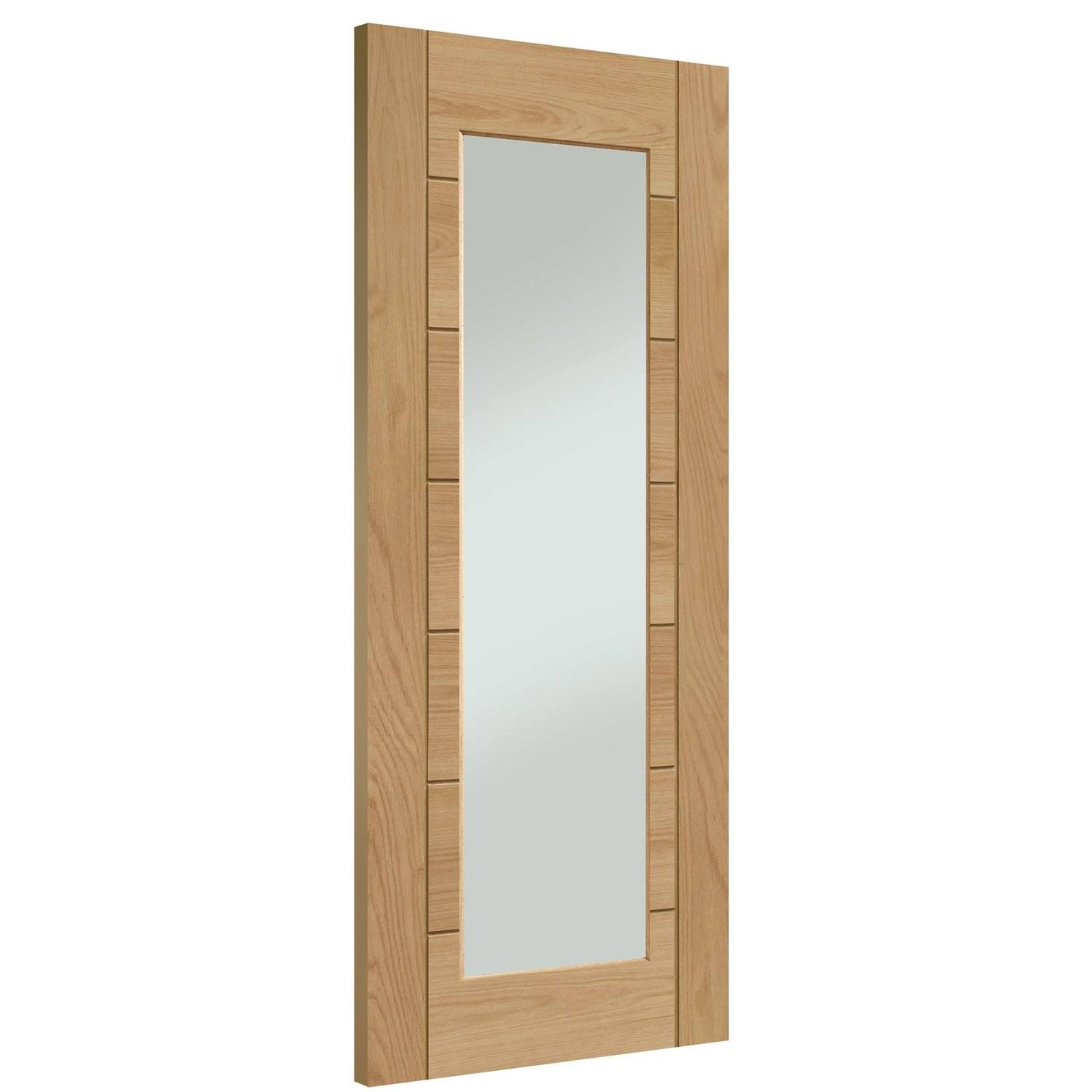

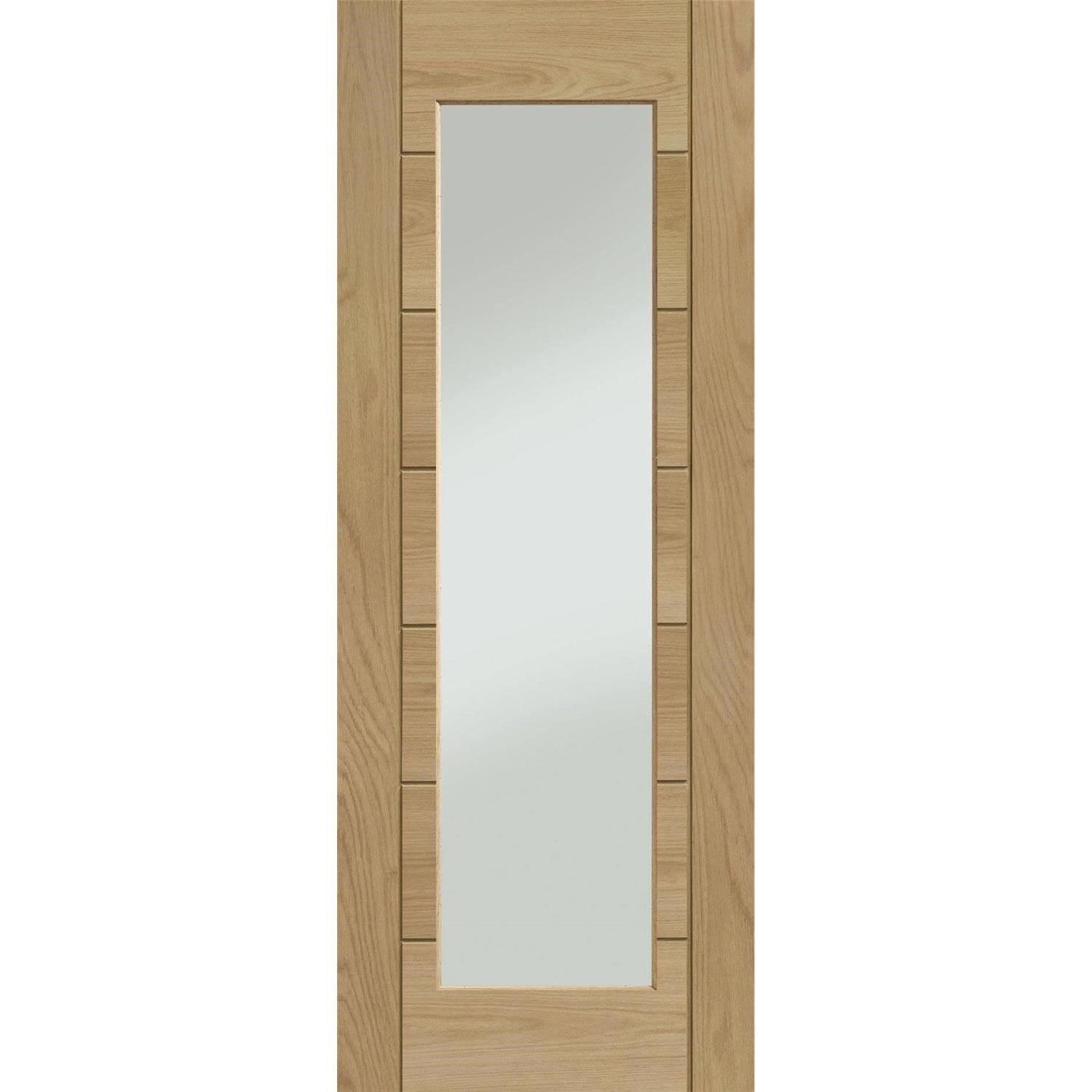

A contemporary glazed oak fire door with an extended clear glazed panel in the centre of the door. The clear glass allows for natural light to flow between two rooms. This family of doors also comes with panelled, fire and bi-fold door options.
A contemporary glazed oak fire door with an extended clear glazed panel in the centre of the door. The clear glass allows for natural light to flow between two rooms. This family of doors also comes with panelled, fire and bi-fold door options.
Installation
|
|
| Dimensions | 1981 x 686 x 44mm |
| Lipping Around Edges | 11mm |
| Trimming Allowance - Top | 2mm |
| Trimming Allowance - Bottom | 2mm |
| Trimming Allowance - Each Side | 2mm |
| Hinge Type Required | 4 Inch Butt Hinge |
| Number of Hinges | 3 required |
Need To Know
|
|
| Range | Palermo |
| Collection | Palermo Premium |
| Door type | Fire Doors |
| FD Rating | FD30 |
| Use | Internal |
Construction
|
|
| Material | Oak |
| Veneer | |
| Veneer Material | American White Oak (Grade A) |
| Veneer Thickness | 0.6mm |
| Texture | Woodgrain |
| Inlay Material (Grooves) | Oak |
| Lipping Material (Edges) | Oak |
| Core Type | Solid Core |
| Weight | 32kg |
Glazing
|
|
| Glazing Type | Glazed Doors |
| Transparency | Clear glass |
| Glass Shape | fully glazed |
| Glass Cut | Flat Glass |
| Specification | Toughened 6mm Safety Glass |
| Compliance | British Standard BS EN 12150 |
Design
|
|
| Door Style | Modern |
| Colour | Brown |
