The details
Elevate the style and comfort of your home with our Onda range of stylish Wave Single Panel Vertical designer radiators. The elegantly eye-catching design and graceful finish add a sophisticated touch to any space.
These radiators feature sleek, fluid lines that create a striking visual impact while providing efficient and high-performance heating. The slim, Vertical form fits seamlessly into any room, from living areas to bedrooms.
Onda Vertical designer radiators are engineered to provide exceptional heating output, ensuring your space is always warm and inviting, even in the coldest months. Available in different sizes designed to meet various heating needs.
Crafted from premium steel, these elegant wave-shaped oval tube radiators are designed for durability and long-lasting performance. Each radiator features a resilient coating that protects against wear and tear, ensuring easy maintenance and adding a contemporary element to your décor. Designed for central heating systems, Onda wave-shaped oval tube radiators ensure consistent and reliable warmth throughout your home, while adding a touch of refined elegance.
Key features

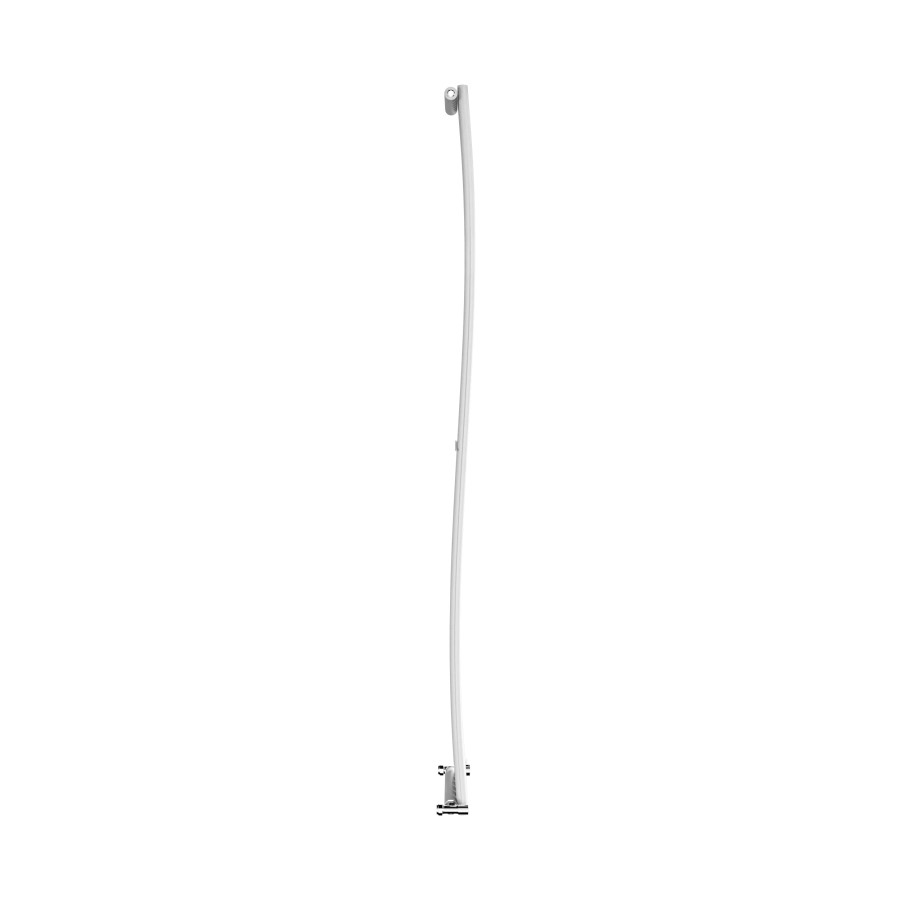

- Sleek Vertical single-panel radiator with 7 wave-shaped oval bars, perfect for both modern and classic interiors
- Slim and space-saving with enhanced thermal efficiency
- 3735 BTU / 2926 BTU (Delta T60 / T50) heat output
- Durable construction with a high-quality finish for long-lasting use
- Easy to maintain – can be cleaned repeatedly without affecting quality or finish
- Powder-coated steel – resistant to scratches, stains, impacts, chemicals, acids, and UV-resistant
- A variety of colours to suit different designs
- Compatible with all central heating systems
- Approx. Wall to Radiator Face (mm): 103 mm
- Approx. Wall to Pipe Centre: 63 mm
- Approx. Pipe Centre to Pipe Centre: 513 mm
- Built to Last: 1.5mm thick steel for guaranteed durability
- Tested and certified by a notified body to CE/ BS EN 442 Standards
- CE Marked and Declaration of Performance provided (DOP)
- ISO 9001:2015 / GB/T19001-2016 Registered Manufacturer
- Includes User Manual, Wall fixings, Wall plugs, Blanking and Bleed plug
Specifications
- Wall Mounted: Yes
- Colour: White RAL: 9016
- Net Size (HxWxD): 180x41.3x9 cm
- Gross Size (HxWxD): 187x47.8x11 cm
- Net Weight: 22.5 kg
- Gross Weight: 25.15 kg
- Panel Type: Single
- Columns per panel: 7
- Shape: Oval Waved
- Direction: Vertical
- Max Operation Pressure: 9 bar
- Max Operation Temperature: <95°C
- Connection Size: ½ inch BSP
- Water Content: 10.22 litres
Please note: Valves are not included but can be added to your order separately. Please note that all measurements are approximate. We recommend purchasing radiators and valves before fitting the pipework.
Choose this Wave Single Panel Vertical Radiator with graceful, fluid lines from the Onda range to give your home a modern look while enhancing its style and comfort.
Downloads
User manualDeclaration of Performance (DOP)
How much heat will I need?
All radiators have a BTU rating, which essentially tells you how much heat they can generate. But how do you know how many BTUs you'll need to effectively heat your room? Easy! Simply click here to use our BTU calculator and find out in seconds.
What is a BTU?
BTU stands for British Thermal Units and represents the level of heat a radiator provides. The required BTU level to heat your room will influence the size of your radiators. Fortunately, we offer numerous options in all shapes, styles and sizes for you to find one that's right for you.
How is it calculated?
This figure is calculated by taking into consideration the dimensions of your room (width, length, height) and the type of windows (such as single or double glazing). You can either use one radiator to reach the total BTU level required, or a number of radiators which reaches the required BTU level when added together - let's get to it!
Why do I need to work out my BTU?
It's important that you get to grips with what BTU you will need in your room as you want to achieve the goldilocks effect – not hot, not cold but just right! If you're overheating your room, you'll probably see your bills increase too. It definitely helps to consider the space that you have before making a final decision.
Still unsure?
If you are still unsure of how much heat you may need please use our BTU Calculator below.
Once you’ve decided on a new bathroom radiator, you’ll also need to pick up some radiator valves separately to go with it. Compatible valves will be listed alongside the radiator on the product page or you can browse our full range of valves.
