Product Information

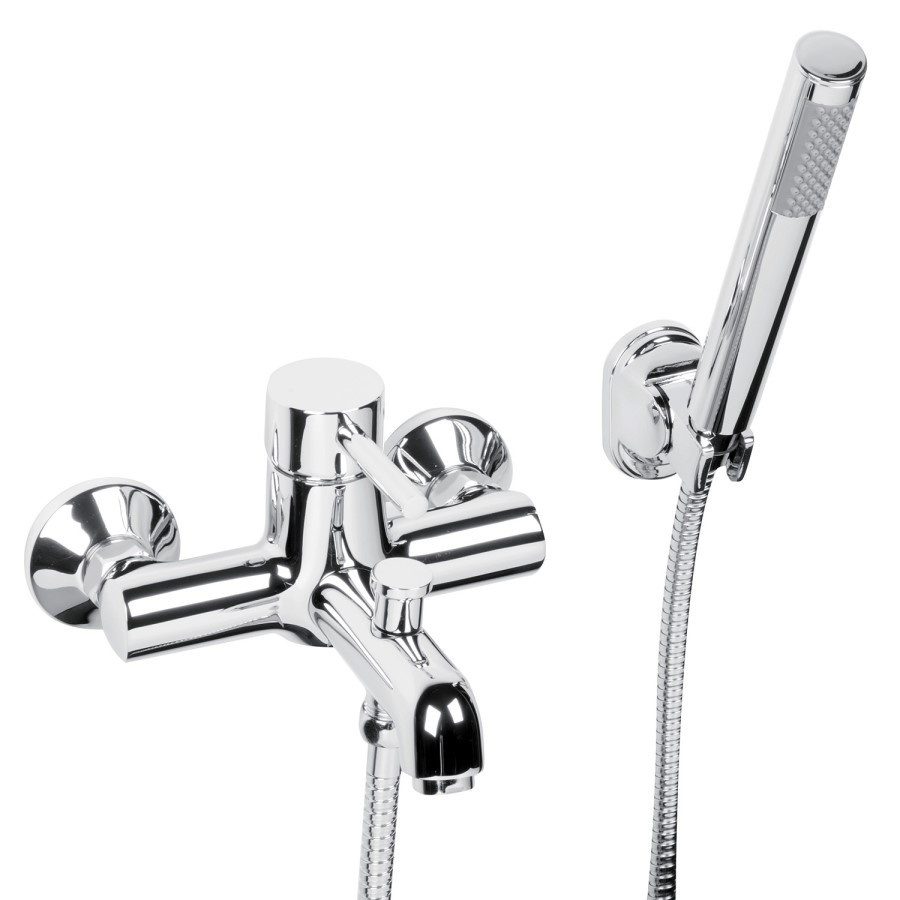

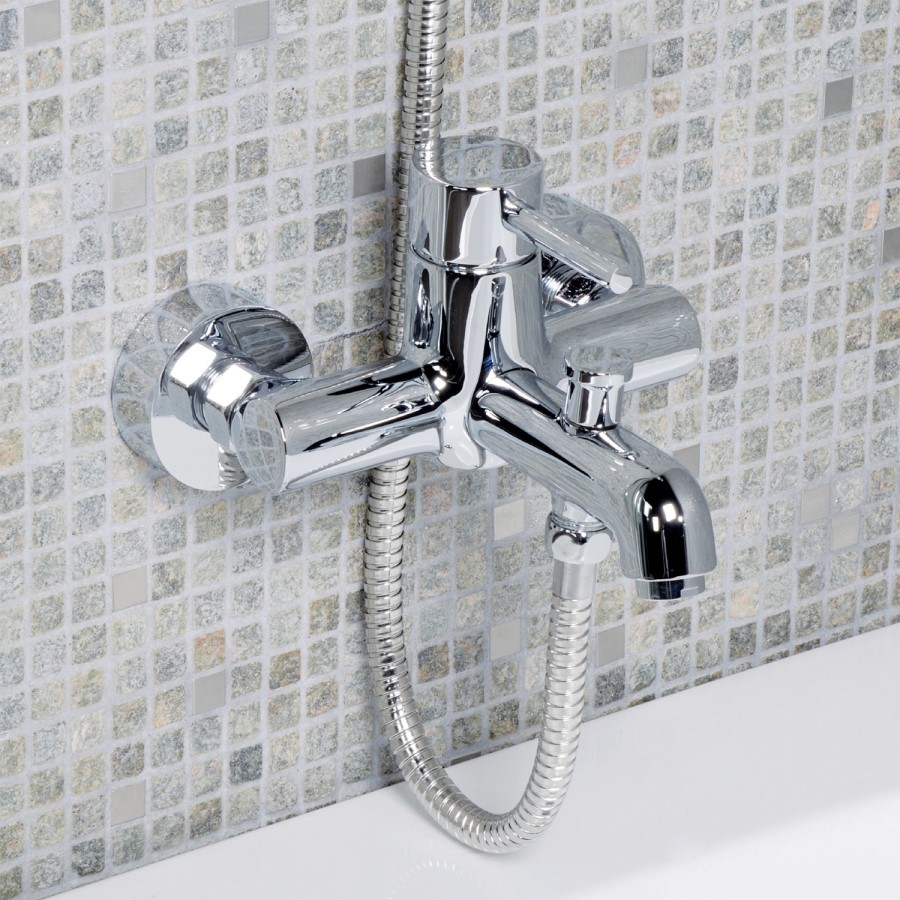

Focus Wall Mounted Bath Shower Mixer
Summary
The focus wall mounted bath shower mixer will provide the contemporary style to meet the design criteria of the modern minimalist bathroom. This bath shower mixer uses the latest and highest quality ceramic disc cartridge for an easy to use and highly reliable operation. Easy single lever control provided by a stylish handle covering both the on/off and temperature operation.
Features
- A stunning wall mounted bath shower mixer designed with a curved spout
- Built with Ceramic Disc technology
- Manufactured from solid brass with a chrome finish
- Single lever for ease of operation controlling on/off and temperature
- A Better Bathrooms best seller
Specifications
- Minimum pressure 0.5bar (average flow rate of 9.3 litres per minute)
- Maximum pressure 3.0bar (average flow rate of 24.8 litres per minute)
- Suitable for
- combi boilers
- pumped systems
- pressurised systems. - Single lever for ease of operation controlling on/off and temperature
- Comes complete with shower Handset, hose and wall bracket
Item Code:
BeBa_7108
Question from steve collett: Asked on 24/12/2015 What is the dimension between the connections
Answer from Benjamin Linnert Good Morning,
Thank you for your question.

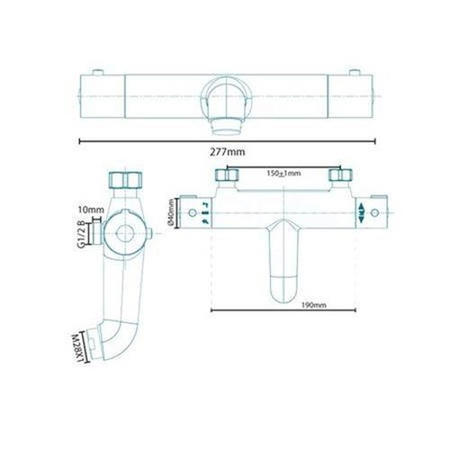

The distance between the two pipe centres is approximately 150 mm
If there are any further questions, or your looking for a certain delivery time. Please feel free to give me a call on 0161 667 6560 and ask for Ben.
Kind Regards.
Question from Julie: Asked on 28/06/2015 Bought these taps on the 28-5-15 fitted them today small problem they is a small hole between tap and shower can u advise what to do as fitted and water squirts out order number 200109842 thanks
Answer from Nathan McGregor Hello.
Thank you for your question.
If you call our customer support team on 01925 544 861 they will be able to help.
Regards.
Question from kunverji patel: Asked on 25/06/2014 what diameter are the connection for this mixer
Answer from Darren Standard 22mm
Question from Gaynor: Asked on 29/12/2013 Hi there do you sell wall mounted plate kits to go with this bath mixer tap?
Many thanks.
Question from richard: Asked on 27/02/2013
Are the pipe centers adjustabale that fit to the pipes
Answer from Mike B
Hi there
Yes, the centres for this tap are adjustable between 130mm and 170mm.
Question from Steve: Asked on 01/01/2013
Does this product require any further fixings to mount it to the wall? Apart from the standard hot and cold pipework. Never done wall mounted taps before. Does it come with clamps etc to secure the tap to the wallboard? Thanks.
Answer from Anthony
Hi there
This product is not supplied with any wall fixings as this would be dependant on the wall type you are attaching it to. We would advise speaking to a qualified installer on this query.
Question from JOHN NEATE: Asked on 19/09/2012
Hello
Focus wall mounted bath shower mixer states minimum operating pressure of 0.5 even though it does not mention gravity fed system I presume this will work on a gravity system? same question for the matching focus basin tap.
Answer from Mike B
Hello
It would be suitable to run off a gravity fed system so long as there is the minimum pressure of 0.5 bar pressure. The same applies for the Focus Basin Mono
